MODFLOW-API Head monitor example

In this example the modflow-api is used in a more complex callback function to create a Head Monitor that updates at the timestep level. This example reverses CHD boundary conditions each stress period on a simple 10 x 10 model and displays the head results for each timestep.

from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
from flopy.discretization import StructuredGrid
from flopy.plot import PlotMapView
from IPython.display import clear_output, display

# remove this import if adapted to python script
from modflowapi import Callbacks, run_simulation

First we create a class to hold a callback function.

This class handles changing the CHD boundary condition as well as updating the matplotlib plot.

class StructuredHeadMonitor:
    """
    An example class that reverses the model gradient by
    swapping CHD boundary conditions each stress period,
    and monitors the head at each timestep by updating
    a matplotlib plot. This class could be adapted to
    be used as a head monitor to observe other changes
    in the model by modifying the callback class.

    Parameters
    ----------
    layer: int
        zero based model layer to plot
    vmin : float
        minimum head value for color scaling on the plot
    vmax : float
        maximum head value for color scaling on the plot
    """

    def __init__(self, layer, vmin, vmax):
        self.modelgrid = None
        self.ax = None
        self.pmv = None
        self.pc = None
        self.ax = None
        self.layer = layer
        self.vmin = vmin
        self.vmax = vmax
        self.kperold = None

    def build_modelgrid(self, ml):
        """
        Method to update the matplotlib plot

        Parameters
        ----------
        ml : ApiModel
            modflow-api ApiModel object
        """
        delc = ml.dis.get_advanced_var("delc")
        delr = ml.dis.get_advanced_var("delr")
        top = ml.dis.top.values[0]
        botm = ml.dis.bot.values
        idomain = ml.dis.idomain.values
        self.modelgrid = StructuredGrid(delc=delc, delr=delr, top=top, botm=botm, idomain=idomain)

    def initialize_plot(self):
        """
        Method to initialize a matplotlib plot using flopy
        """
        fig, ax = plt.subplots(figsize=(8, 8))
        self.fig = fig
        self.ax = ax
        self.pmv = PlotMapView(modelgrid=self.modelgrid, ax=ax, layer=self.layer)
        grid = self.pmv.plot_grid()
        idm = self.pmv.plot_inactive()
        initial = np.full(self.modelgrid.shape, np.nan)
        self.pc = self.pmv.plot_array(initial, vmin=self.vmin, vmax=self.vmax)
        plt.colorbar(self.pc)

    def update_plot(self, ml):
        """
        Method to update the matplotlib plot

        Parameters
        ----------
        ml : ApiModel
            modflow-api ApiModel object
        """
        heads = ml.X
        self.ax.cla()
        grid = self.pmv.plot_grid()
        idm = self.pmv.plot_inactive()
        self.pc = self.pmv.plot_array(heads, vmin=self.vmin, vmax=self.vmax)

        # only applicable to jupyter notebooks, remove these
        # two lines in python script
        display(self.fig)
        if ml.kper == (ml.nper - 1) and ml.kstp == (ml.nstp - 1):
            pass
        else:
            clear_output(wait=True)

        # the pause time can be reduced if adapted in python script
        plt.pause(0.1)

    def callback(self, sim, callback_step):
        """
        A demonstration function that dynamically adjusts the CHD
        boundary conditions each stress period in a modflow-6 model
        through the MODFLOW-API and then updates heads on a matplotlib
        plot for each timestep.

        Parameters
        ----------
        sim : modflowapi.Simulation
            A simulation object for the solution group that is
            currently being solved
        callback_step : enumeration
            modflowapi.Callbacks enumeration object that indicates
            the part of the solution modflow is currently in.
        """
        if callback_step == Callbacks.initialize:
            ml = sim.get_model()
            self.build_modelgrid(ml)
            self.initialize_plot()

        if callback_step == Callbacks.timestep_start:
            ml = sim.get_model()
            if ml.kper == 0:
                self.kperold = ml.kper
                head = ml.chd.stress_period_data.dataframe["head"].values
                self.head = head
            else:
                df = ml.chd.stress_period_data.dataframe
                if self.kperold != ml.kper:
                    self.kperold = ml.kper
                    self.head = self.head[::-1]

                df["head"] = self.head
                ml.chd.stress_period_data.dataframe = df

        if callback_step == Callbacks.timestep_end:
            ml = sim.get_model()
            self.update_plot(ml)

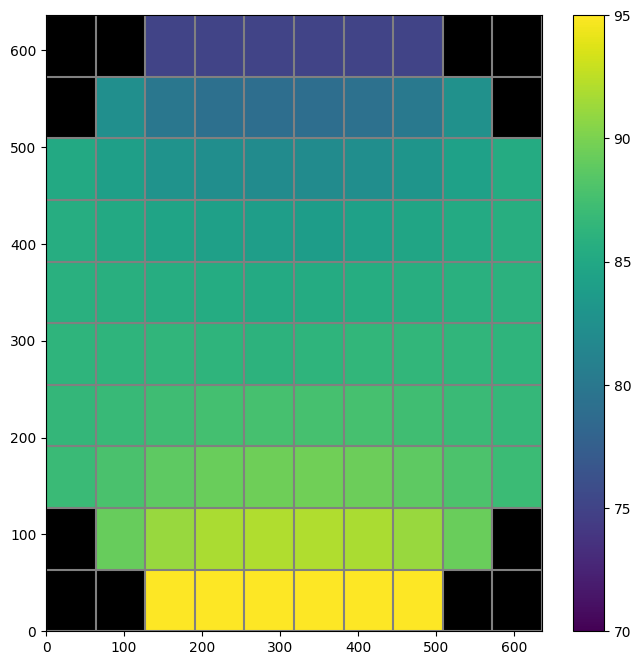

Run the model using the and supply the StructuredHeadMonitor’s callback function

hdmon = StructuredHeadMonitor(layer=0, vmin=70, vmax=95)
dll = "libmf6"
sim_ws = Path("../data/dis_model")
run_simulation(dll, sim_ws, hdmon.callback, verbose=True)

Solving: Stress Period 12; Timestep 31

Normal termination of simulation.
